Wighill Park Guns Shop

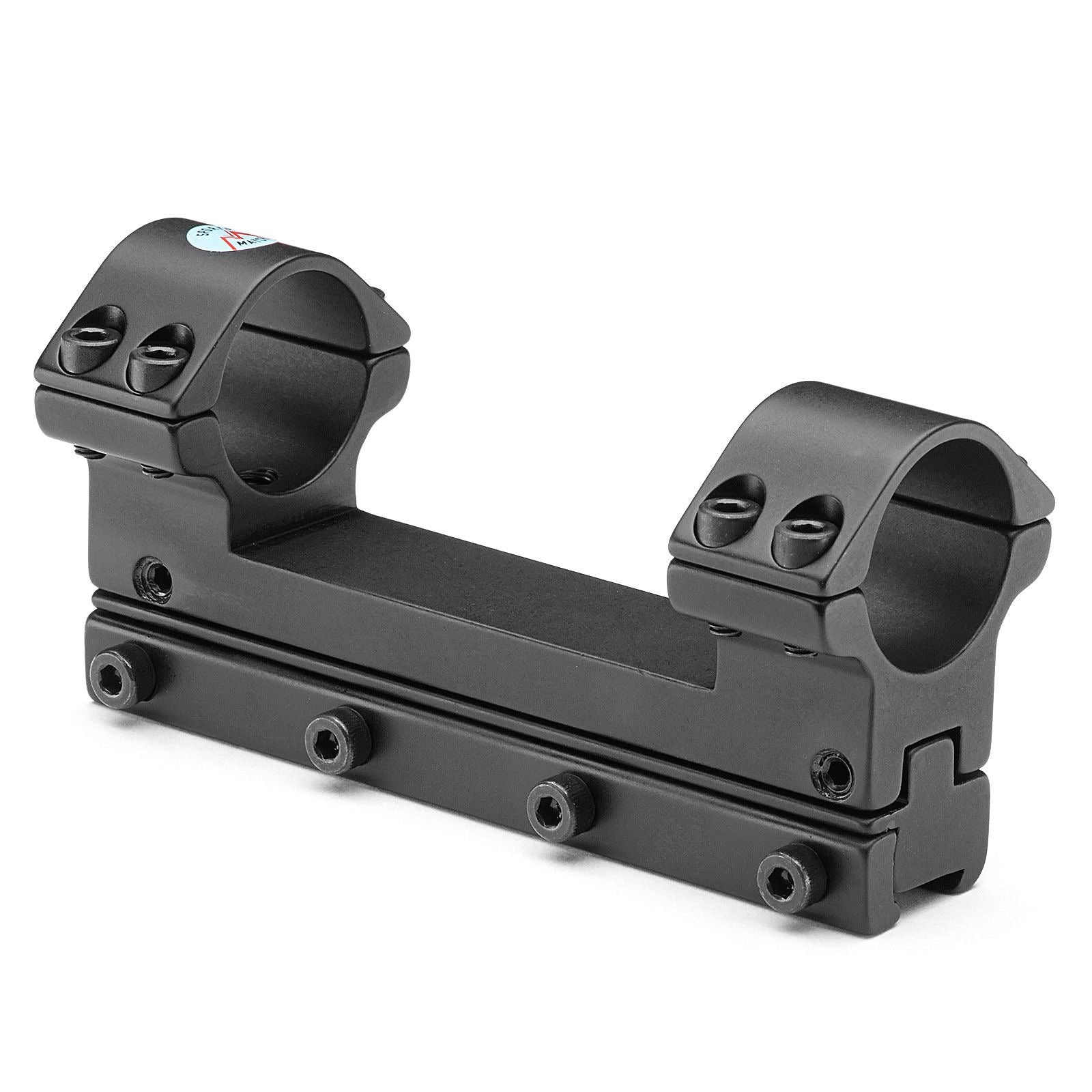

Sportsmatch AOP55 1 Piece Double Screw 1" Mount Windage & Elevation Adj 56mm
Sportsmatch AOP55 1 Piece Double Screw 1" Mount Windage & Elevation Adj 56mm
Regular price
£27.50 GBP
Regular price
£55.00 GBP
Sale price
£27.50 GBP
Unit price
/
per
Taxes included.
Couldn't load pickup availability
- Adjustable for windage and elevation. Suits up to 60mm lens dia. on most rifles. Maximum amount of adjustment from one end of the mount to the other is 2mm (windage & elevation).
- 1 Piece Mount.
- Base Fitting: 9.5 - 11.5mm (3\8") Dovetails - Most popular size (suits most MODERN airguns & .22 rimfire rifles).
- Tube Size: To fit 1" (25.4mm) diameter body tube scopes.
- Front Lens Size: Up to 56mm - This figure describes the maximum size of the objective (front) lens the mount is designed for when the dovetails are flush with the barrel. Please bear in mind scopes with front PX adjustment will often need higher mounts.
- Bolt Type: Allen Key bolts - Allen Key(s) Supplied.
- Clamp Design: Double Clamp (four bolts on each cap).
- Dimension A: 26.5mm
- Dimension B: 110mm
- Dimension C: 67mm
- Sportsmatch offer huge selection of quality mounts - All Made In England!
